Gemini Waverider
550 & 650

Water Rescue

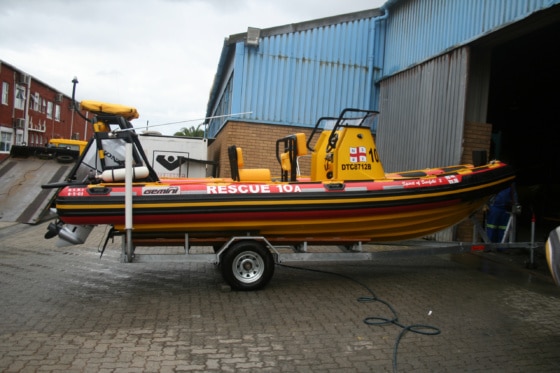

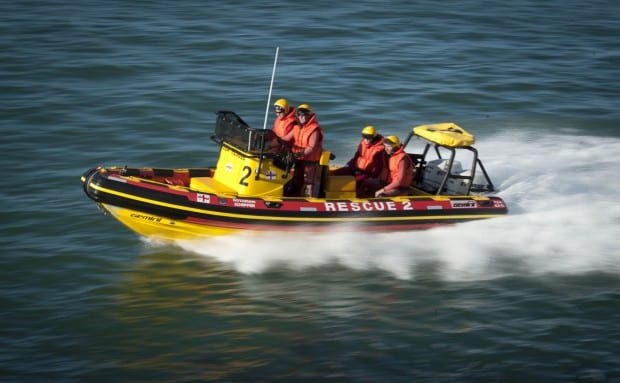

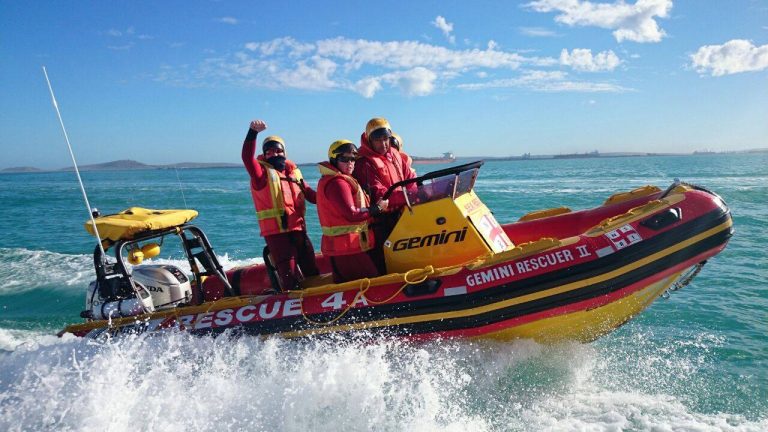

Gemini Waverider 550 & 650

De robuuste GEMINI Waverider 550 en 650 zijn ontworpen om de zwaarste weersomstandigheden te weerstaan. Deze middelgrote modellen in het Gemini-assortiment van RIBS worden niet alleen commercieel gebruikt, maar ook voor reddings- en militaire operaties internationaal.

031-scaled-560x373
030-scaled-560x373
029-scaled-560x373
Random-29-Sept.-2010-003-560x366
Bakoven-4422-620x412
Bakoven-4397-620x394
6.5-wr-NSRI-Manual-Photos-022-560x374
Bakoven-4488-620x383
P1150729-scaled-560x420
n1283725052_25438_7897
March-Exercise-219-scaled-560x373
March-Exercise-212-scaled-560x373
????????????????????????????????????
ACA-101107-325-scaled-560x373
MG_9228-Ruff-Stuff-Disk-560x373
MG_9212-Ruff-Stuff-Disk-560x373
foto01
Contacteer ons voor meer info of een vrijblijvende offerte

Standaard functies

  • Hypalon tubes (1100Dtex)
  • 2 x Heavy duty shark fin rubbing strakes
  • Full length grab line
  • 5 x Inflation Valves
  • 5 x Over pressure release valves
  • Internally taped seams
  • 2 x Paddles
  • Stainless steel bow eye
  • Anchor rope bow protection
  • Anchor locker
  • Aluminium keel protection
  • Transom knee
  • Engine motor well
  • Under deck cable track
  • Below deck locker
  • 2 x Towing points
  • Self-draining deck
  • Non-slip deck
  • 1 x Double action pump
  • 1 x Repair kit

Technische specificaties Gemini Waverider 550

  • LENGTH OVERALL (LOA): 5.5M
  • INTERNAL LENGTH (MOTOR WELL TO ANCHOR LOCKER): 3.3M
  • BEAM OVERALL: 2.3M
  • BEAM INTERNAL: 1.2M
  • TUBE DIAMETER: 480
  • TUBE VOLUME: 1.935
  • NO. OF TUBE COMPARTMENTS: 5
  • INFLATION PRESSURE: 0.25BAR
  • WEIGHT EMPTY: 350
  • MAX WEIGHT: 1451
  • MAX PERSONS: 10
  • MAX LOAD: 1101
  • REC HP/ (KW): 100
  • MAX HP/ (KW) ISO 6185-3: 120
  • MAX ENGINE WEIGHT AS PER SAMSA BOUYANCY CERTIFICATE (KILOGRAMS): 240
  • SINGLE ENGINE INSTALLATION: L: 20″(508)
  • TWIN ENGINE INSTALLATION: S: 20″(508)
  • HULL DEADRISE (DEGREES): 20
  • MAX FUEL CAPACITY (LITRES): 130

Technische specificaties Gemini Waverider 650

  • LENGTH OVERALL (LOA): 6.5M
  • INTERNAL LENGTH (MOTOR WELL TO ANCHOR LOCKER): 3.9M
  • BEAM OVERALL: 2.4M
  • BEAM INTERNAL: 1.42
  • TUBE DIAMETER: 470
  • TUBE VOLUME: 2.165
  • NO. OF TUBE COMPARTMENTS: 5
  • INFLATION PRESSUREv0.25BAR
  • WEIGHT EMPTY: 620
  • MAX WEIGHT: 1623
  • MAX PERSONS: 8
  • MAX LOAD: 1003
  • REC HP/ (KW): 150
  • MAX HP/ (KW) ISO 6185-3: 180*
  • MAX ENGINE WEIGHT AS PER SAMSA BOUYANCY CERTIFICATE (KILOGRAMS): 335
  • SINGLE ENGINE INSTALLATION: X:25″ (648)
  • TWIN ENGINE INSTALLATION: L: 20″(508)
  • HULL DEADRISE (DEGREES): 18
  • MAX FUEL CAPACITY (LITRES): 280
